Automatic snack packaging complex 1400 kg/h

Automatic snack packaging complex 1400 kg/h

I propose to consider a new Korean packaging complex for packaging in pillow bags and snacks with a capacity of 100 packages/min. The product will come from the storage hopper, through the mixing drum into plastic film bags. Product: salted snacks. The specific gravity of the product: is 120 - 180 grams/liter. Dose weight: 70 or 110 grams. Package size (WxH): 120x180 mm, 160x240 mm. Type of longitudinal seam: under turn. Film type - PP, PP metallized. Film thickness: 40 - 60 microns. Productivity: 2х50 pack/min.

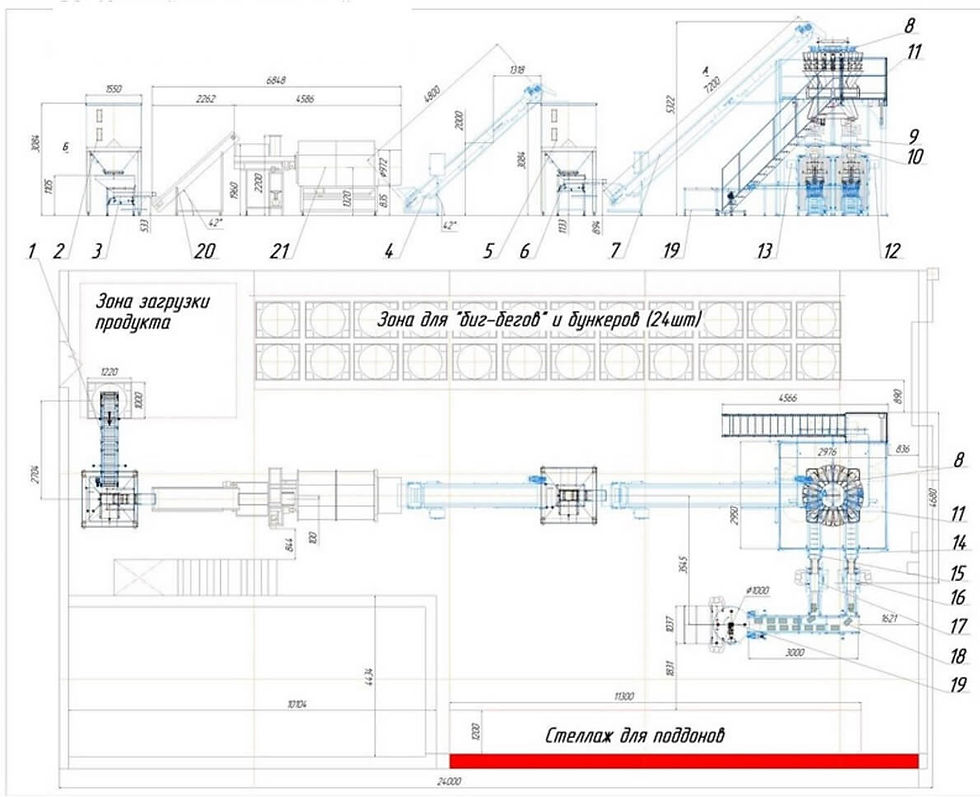

The line consists of:
1. Loading belt conveyor, inclined L-2700
2. The bunker is accumulative.
3. Hopper loading, vibrating.
4. Loading belt conveyor L-4800.
5. Bunker accumulative
6. Vibrating tray (vibrating conveyor).
7. Loading belt conveyor L-7200.
8. Weight batcher combination (multi-head) 20 bunker, for work with two packers;
9.10. Gravity metal detector.
11. Trestle for installation and maintenance of the dispenser.
12.13. Vertical Packing Machine
14.15. Outfeed belt conveyor.
16.17. Scales in the flow with a rejection device.
18. Collecting belt conveyor, L-3000.
19. Cumulative table.

Technical specifications:
Automatic double vertical packing machine. Model RK2-4230 x 1 set $60.900,00
Film width: 100-420mm
Package size range: L*W=(50-300)*(50-200) mm
Packer: 2 in 1
Speed: max. 90 beats per minute/track (It depends on filling condition and item volume)
packaging material thermal film (Multilayer film/about 70~90 microns)
Fill range 10-1000g (depends on product and condition)
Output 10-90 bags/min/channel (depends on packaging) material and filling condition.
Machine weight about 1000 kg
Power consumption approx. 6 kW
Power supply 220V 50/60Hz
It required air 0.36 m3/min 0.6 MPa (air compressor must be prepared by the buyer).

Gravity metal detector 1 set $19.200,00
Detection Diameter: 120mm
Detection sensitivity (without product): Fe≥ diameter 1.2mm, non-Fe≥ diameter 2mm, SUS304 ≥ diameter 2.5mm
Pressure requirement: ≥0.5Mpa
Ambient temperature: 10-40°C
Humidity < 85% (avoid condensation)
Power supply: 220 V AC, 1F, 50 Hz

Scale with 24 heads x 1 set $46.700,00
Weighing heads: 24
Weighing range (g): 25-500 grams*N
Filling accuracy: +/- 1-3 grams (it depends on the filling condition of the item)
Hopper volume: 1.6 l
Required power (V/Hz): AC220 50/60Hz
Power consumption (kW): 2.0
Compressed air requirements: no data
Compressed air consumption: no data

Inclined conveyor 1 pc. x $17.800,00
Entry height: >400mm
Outlet height: as per the drawing
Speed: 5~6 m3/h
Conveyor belt: PU
Power supply: 1.5 kW, AC/220 V, 50 Hz.
Including vibratory feeder (bunker)

Working platform 1 pc. x $9.500,00
Frame material: 304 stainless steel
Dimensions (L*W*H): according to the drawing
Platform floor: 3.0mm thick patterned aluminum plate
With stairs and railings

Total: $154.000,00

Wooden packing and transportation to the seaport of Busan $5.400.
Installation fee (hotel room, airfare, and travel allowance) $14.700 for 3 engineers for 4 days.

Transport: at the expense of the buyer. We offer delivery to any non-sanctioned country worldwide, subject to prior agreement.

Warranty: The warranty period for new equipment is 12 months for mechanical parts and 6 months for electronic parts.

The check of electronic components is carried out by technical staff at our company office in Korea. The costs associated with technical inspection, functional testing, transportation and packaging of spare parts for their repair or replacement, as well as labor costs for the installation of spare parts, as mentioned above, are at the expense of the Buyer.

Repair or replacement of machine parts with non-original spare parts, voids any warranty obligations from the Manufacturer, this also applies in case of technical actions not presented in the “Operation and Maintenance Manual” machines or which are performed without the permission of the manufacturer. Parts of the machine that are subject to normal wear or improper maintenance during the operation of the machine are not covered by the warranty. In all of the above situations, the Buyer cannot claim damages from the Manufacturer.

The buyer is obliged to check that, upon delivery to the destination, the equipment technically fully complies with the contractual requirements and that no damage was found during transport. Otherwise, the client must not use the machine and notify us within 7 days. The responsibility of the Manufacturer is limited to the reimbursement or replacement of only those parts that, in the opinion of the Manufacturer, are damaged (faulty) or non-functional. In case of detection of damaged (faulty) parts of the machine, a complete replacement of the machine is excluded and the Manufacturer is not responsible for collateral damage or loss of customers of the Buyer due to a damaged (faulty) machine. Damaged (faulty) parts are replaced with new ones only after they are received at the factory.

The following situations are not covered by the warranty:
Accidental damage during transportation;
Damage caused by improper use of the machine or as a result of its negligence and insufficient maintenance;
Malfunctions caused by improper installation of the machine;
Interventions performed by unauthorized third parties or other malicious interference;
The company is not responsible for problems, damages, incidents that may arise as a result of the absence or poor application of the instructions described in the “Operation and Maintenance Manual for the machine”. Any use or intervention on a machine that does not comply with the manual mentioned above should be considered wrong and inappropriate.

VAT: not included

EU Compliance: all machines are accompanied by a printed "Operation and Maintenance Manual", which contains the EC Declaration of Conformity, as well as the corresponding nameplate.

Responsibility: The manufacturer does not bear any responsibility for the misuse of the machine.

Claims: Possible claims will only be taken into account if they are submitted in writing within 7 days from receipt of the Goods. The legal entity responsible for resolving possible claims is the Court of Korea.

Delivery of goods: delivery of goods without written approval and relevant accompanying documents is not allowed.

Manufacturer: Korea

Price for everything FOB: $174.200,00
