Automatic onion peeling line

Automatic onion peeling line

€108,800.00Price

Our Korean company offers a new automatic line for pneumatic cleaning of onions, small and large size, with a capacity of 800 kg/h. Onions are first loaded into a receiving hopper with a feed conveyor. The staff then loads and distributes the onions at the entrance to the root and tail trimming machine. Then it goes further and is cleaned pneumatically from the peel, then it enters the viewing table, where it is additionally manually cleaned by the staff, if necessary. Such the process is economically viable in countries where labor is too expensive.



Based on our US sales experience, the bulb usually weighs 350-450 grams, our machine can cut 1-2 bulbs per second, so that it can also self-clean quickly. All peel and debris will be removed by an additional conveyor from the line to the storage bin.

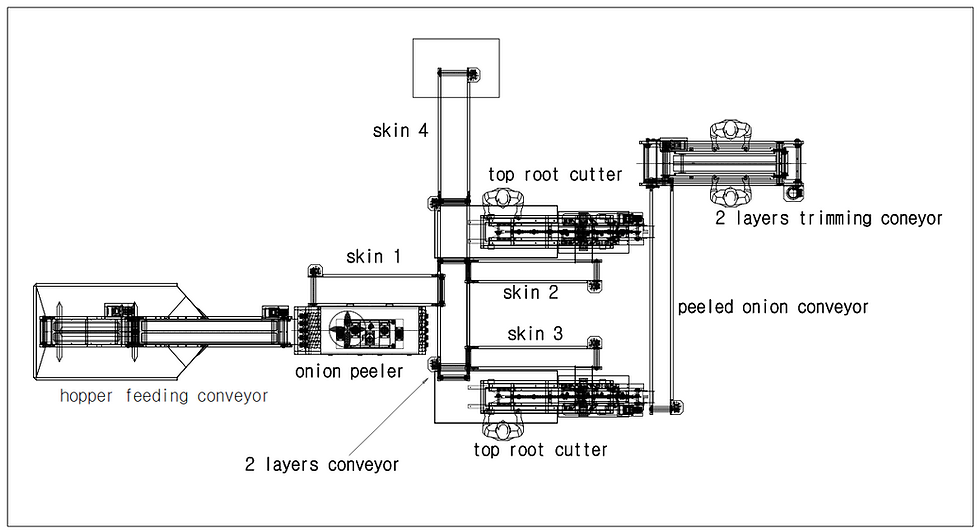

Line composition and technical characteristics:

1. Hopper feeding conveyor. Dimensions: 1500(W) x 3200(L) x 1700(H). Power supply: 3P, 380 V and 1.3 kW.
2. Onion peeler machine. Dimensions: 900(W) x 2000(L) x 1800(H). Power supply: 3P, 380 V and 1.5 kW.
3. Skin discharging conveyor 1. Dimensions: 600(W) x 2000(L) x 400(H). Power supply: 3P, 380 V, 0.4 kW.
4. Root and top cutter. Dimensions: 900 (W) x 3000 (L) x 1500 (H). Power supply: 3P, 380 V, 1.5 kW.
5. 2 Layers peeled onion conveyor. Dimensions: 600 (W) x 2800 (L) x 900 (H). Power supply: 3P, 380 V, 0.8 kW.
6. Skin discharging conveyor 2, 3. Dimensions: 500 (W) x 2000 (L) x 350 (H). Power supply: 3P, 380 V, 0.4 kW.
7. Skin discharging conveyor 4. Dimensions: 600 (W) x 2400 (L) x 1700 (H). Power supply: 3P, 380 V, 0.4 kW.
8. Peeled onion conveyor. Dimensions: 500 (W) x 3600 (L) x 800 (H). Power supply: 3P, 380 V, 0.4 kW.
9. 2 layers trimming conveyor. Dimensions: 700 (W) x 3000 (L) x 800 (H). Power supply: 3P, 380 V, 1.5 kW.



Transport: at the expense of the buyer. We offer delivery to any non-sanctioned country worldwide, subject to prior agreement.



Packing: standard packing wooden pallet + carton box included in the product price. At the request of the buyer for a separate payment, packing in a wooden box is possible.



Warranty: The warranty period for new equipment is 12 months for mechanical parts and 6 months for electronic parts.



The check of electronic components is carried out by technical staff at our company office in Korea. The costs associated with technical inspection, functional testing, transportation and packaging of spare parts for their repair or replacement, as well as labor costs for the installation of spare parts, as mentioned above, are at the expense of the Buyer.



Repair or replacement of machine parts with non-original spare parts, voids any warranty obligations from the Manufacturer, this also applies in case of technical actions not presented in the “Operation and Maintenance Manual” machines or which are performed without the permission of the manufacturer. Parts of the machine that are subject to normal wear or improper maintenance during the operation of the machine are not covered by the warranty. In all of the above situations, the Buyer cannot claim damages from the Manufacturer.



The buyer is obliged to check that, upon delivery to the destination, the equipment technically fully complies with the contractual requirements and that no damage was found during transport. Otherwise, the client must not use the machine and notify us within 7 days. The responsibility of the Manufacturer is limited to the reimbursement or replacement of only those parts that, in the opinion of the Manufacturer, are damaged (faulty) or non-functional. In case of detection of damaged (faulty) parts of the machine, a complete replacement of the machine is excluded and the Manufacturer is not responsible for collateral damage or loss of customers of the Buyer due to a damaged (faulty) machine. Damaged (faulty) parts are replaced with new ones only after they are received at the factory.



The following situations are not covered by the warranty:

Accidental damage during transportation;
Damage caused by improper use of the machine or as a result of its negligence and insufficient maintenance;
Malfunctions caused by improper installation of the machine;
Interventions performed by unauthorized third parties or other malicious interference;
The company is not responsible for problems, damages, incidents that may arise as a result of the absence or poor application of the instructions described in the “Operation and Maintenance Manual for the machine”. Any use or intervention on a machine that does not comply with the manual mentioned above should be considered wrong and inappropriate.



VAT: not included



Commissioning: not included. The cost of installation and commissioning of the machine, carried out by the technical staff, is $500,00 per day, plus transport and accommodation costs.



EU Compliance: all machines are accompanied by a printed "Operation and Maintenance Manual", which contains the EC Declaration of Conformity, as well as the corresponding nameplate.



Responsibility: The manufacturer does not bear any responsibility for the misuse of the machine.



Claims: Possible claims will only be taken into account if they are submitted in writing within 7 days from receipt of the Goods. The legal entity responsible for resolving possible claims is the Court of Korea.



Delivery of goods: delivery of goods without written approval and relevant accompanying documents is not allowed.



Manufacturer: Korea



Factory price FOB: from $108.800,00
